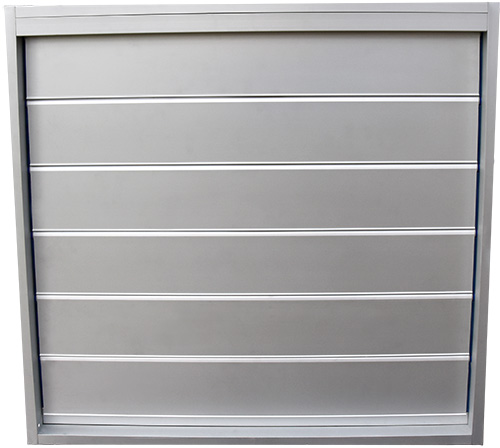

Linkage Free Counterweighted Backdraft Damper

Series 7100 CW: Medium-Duty

  • Designed for laminar, non-turbulent horizontal airflow

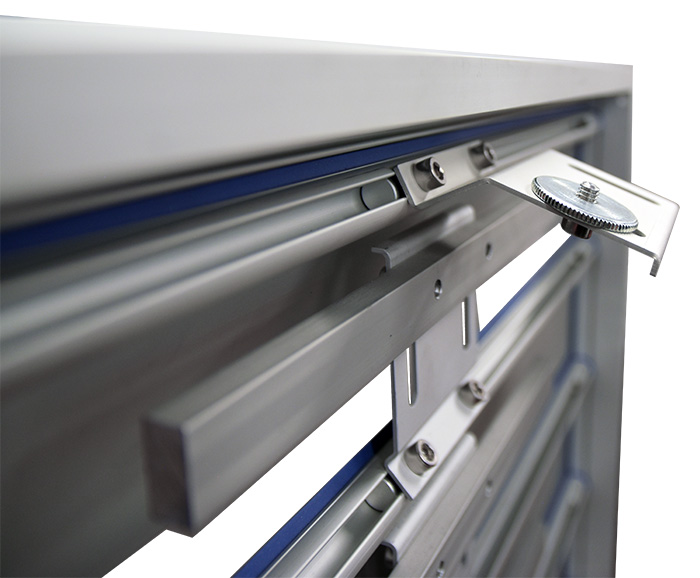

  • With linkage-free system and Tamco designed and engineered counterweight system

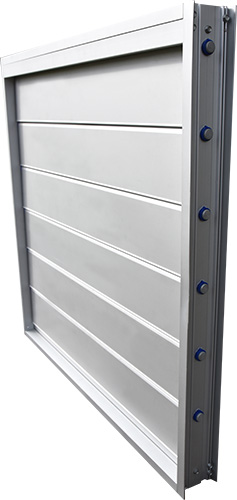

  • Blades are not connected by linkage thus each blade operates independently of one another.
  • Natural blade operation due to static pressure differential and airflow velocities, not through mechanical assistance. This damper is not suitable for use with an actuator.
  • Vertical mount, horizontal airflow operation only

FIND A REP

  • Applications
  • Leakage
  • Options
  • Profiles
  • Documents

Series 7100 CW Medium-Duty, Maintenance-Free Counterweighted Backdraft Damper:

  • Ideal for air handler unit exhausts
  • Perfect for fan intake systems
  • Where a true backdraft damper is required

Air leakage through a 24″ x 24″ (610 mm x 610 mm) counterweighted backdraft damper does not exceed 5.55 cfm/ft² (28.2 l/s/m²) against 1 in. w.g. (0.25 kPa) differential static pressure at standard air.

MR – Moisture Resistance Option:

  • All zinc-plated steel hardware is replaced with stainless steel, protecting hardware from rust and corrosion when exposed to high humidity or high moisture environments.

SW – Salt Water Resistance Option:

  • Extruded aluminum frames, blades and hardware are clear anodized to a depth of 0.7 mil. (18 microns). This prevents rusting and pitting when backdraft dampers are exposed to salt spray or high humidity environments.
  • All zinc-plated, steel hardware is replaced wtih stainless steel, protecting hardware from rust and corrosion.

Please click the option above that is most applicable to you for more information.

SP – Standard profile

  • Manufactured with 2.5” (63.5 mm) deep frames
  • Manufactured with blades that are a maximum 5” (127 mm) deep.

Series 7100 CW Specifications and Performance Data

Download PDF Document
Download PDF Document (French)

Series 7100 CW Suggested Specifications

Download Microsoft Word Document
Download Microsoft Word Document (French)

Tamco Medium-Duty Backdraft Damper Installation Guidelines

Download PDF Document
Download PDF Document (French)

Medium-Duty Backdraft Damper Schedule

Download Microsoft Excel Document
Download Microsoft Excel Document (French)
