Flanged To Duct
Heavy-Duty Backdraft Dampers
MINIMUM SECTION SIZE:
4½”w x 4¾”h (115 mm x 121 mm)
MAXIMUM SECTION SIZE:
25 pi² (2,3 m²)
60 L x 60 H (1524 mm x 1524 mm)
48 L x 75 H (1220 mm x 1905 mm)
- Features
- Documents

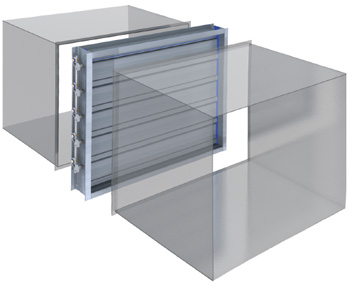

- Heavy-duty backdraft damper is manufactured with 1″ (25.4 mm) flanged frames around the entire face and rear perimeters of the damper, allowing the duct to be directly fastened to it.
- Flanged to Duct Install Type heavy-duty backdraft dampers provide greater free area and lower pressure drop, because the damper frame is mounted outside the duct perimeter.
- Finished inside frame dimensions of the heavy-duty backdraft damper will be identical to the opening width & height dimensions.
- Finished outside frame dimensions will be 2″ (50.8 mm) larger than the opening width & height dimensions.
- Linkage extends up to 1.31″ (33.3 mm) beyond the outer edge of the frame for single-section wide dampers.
- Always provide opening width and height dimensions, when ordering. Width dimension is always parallel to blades. Height dimension is always perpendicular to blades.
